DYJ-1Model belt type juicing machine

The machine uses many rollers to juice the materials that enter the filter screen. With such features as automatic material feeding and discharging, continuous operation,sufficient pressure filtration, high juice yield, low water containing rate in fi


  Scan wechat

Online consultation

+86-18994633332

Call the national hotline to learn more

Contact us


　

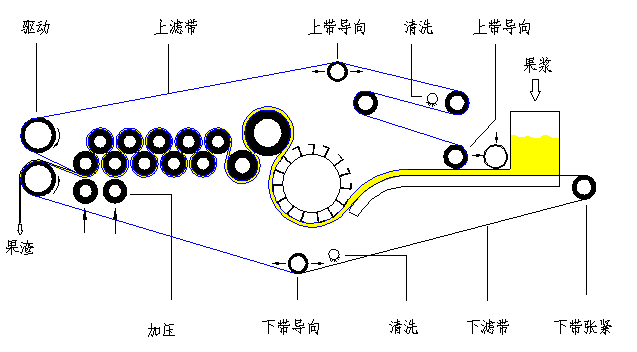

The machine uses many rollers to juice the materials that enter the filter screen. With such features as automatic material feeding and discharging, continuous operation,sufficient pressure filtration, high juice yield, low water containing rate in filter cake, etc., the machine is widely used for juicing process of fruits and vegetables.










Product parameters



Model

DYJ-3

DYJ-5

DYJ-10

DYJ-20

Production capacity t/h

1-3

3-5

5-10

10-20

Linear speed of filter belt

m/min

5

5.7

7.95

6.3

Main transmission speed r/min

11

9.5

11

8.2

Central unit power kw

1.5

3

4

5.5

Cleaning pump power kw

11

7.5

15

30

Cleaning pump flow m³/h

50

16

16

32

Cleaning pump lift m

32

94

189

378

Reflating pump power Kw

2.2

5.5

5.5

5.5
Reflawng pump flow m³/h 12.5 25 25 25
Reflating pump lift m 20 32 32 32
 Material roller power kw   0.37 0.37 0.37
 Consumption of compressed air 1m³/h
 Pressure of compressed air
 0.6MPa
Height of material inlet mm
 1160 1840 2045 1920
 Size of juicing belt mm
 7780×800 11170×1200 14300×1750 16800×2500
 Outline dimensions mm
 3100×1475×1820 3940×2085×2430 5000×2780×2560 5420×3430×2420

Application area

Products are widely used in fruit farmers, self-employed households, growers, fruit and vegetable cooperatives, fruit and vegetable processing plants.
