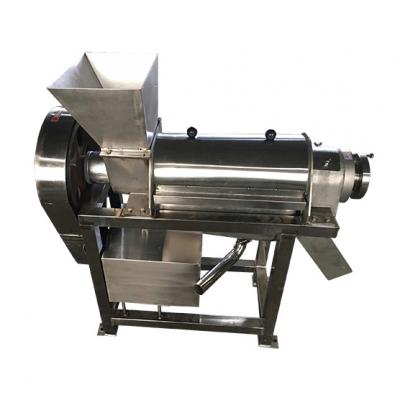

The screw juicer is mainly composed of front support, feed hopper, filter screen, screw shaft, juice container, post manufacturing, slag trough and other components. The left end of the screw main shaft is supported in the rolling bearing seat, the right end is supported in the hand wheel bearing seat, and the motor drives the screw shaft through a pair of belt pulley for operation.



Screw juicer is suitable for pressing juice of tomatoes, carrots, pineapples, apples, aloes, grapes, oranges and other fruits and vegetables. It is driven by screw shaft and has the functions of crushing, juicing and slag removal.



Operation principle of screw Juicer: the screw shaft rotates clockwise along the direction of the slag outlet, the bottom diameter gradually increases and the screw pitch gradually decreases. When the material is pushed by the screw shaft, the screw cavity gradually decreases, and then the material is pressed. In the hopper of fruit and vegetable products, under the push and kneading of the screw shaft, the squeezed juice flows into the juice container at the bottom through the filter screen, and the slag is discharged from the annular space formed between the screw shaft and the cone-shaped part of the pressure regulator. The pressure regulator can adjust the size of the space to adjust the resistance of the slag discharge, which can change the slag discharge rate. The size of the space of the pressure regulator should be determined by the process conditions of the processed fruit and vegetable products It's up to you.



Screw juicer is mainly used for pressing fruit and vegetable juice. The primary component of the equipment is the screw, which gradually increases the bottom diameter along the direction of slag outlet and gradually reduces the pitch. When the material is pushed by the screw, the volume of the screw cavity is reduced, forming the pressing of the material. The material enters the feeding hopper and is pressed under the push of the screw. The squeezed juice flows into the juice container at the bottom through the filter screen, while the waste material is discharged through the annular space formed between the screw and the pressure regulating conical part. The size of the space can be adjusted and the juice yield can be adjusted by the movement of the pressure regulating head along the axial direction.
