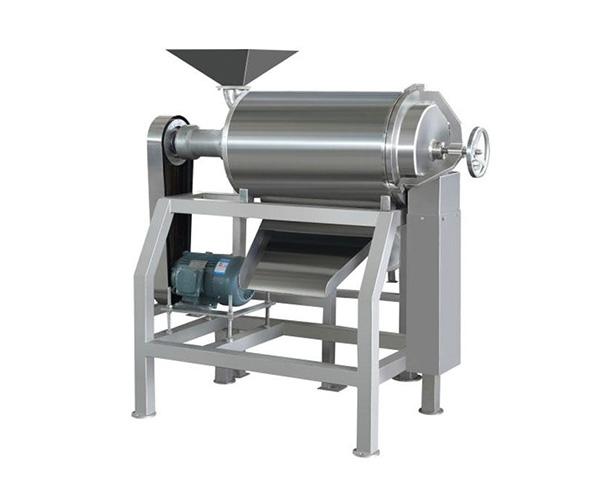

Jujube dehulling beating machine is to separate pulp juice, dregs (skin, seed, kernel) actively, which can be combined in the production line to stop flow operation, and can be used for single machine production. This machine only needs to change the screen of different specifications and adjust the lead angle of the scraper to change the beating speed. It is mainly composed of transmission system, bearing seat, sleeve shaft, cylinder back cover, slurry tray, cylinder body, spline shaft, screen, scraper (or beating rod), cylinder front cover, frame and other parts.

The working principle of red jujube dehulling beating machine is as follows

The motor is driven by a belt to make the rotor parts on the spline rotate at a high speed. The fruit enters the machine from the feed port. The material is spirally transported to the beating bar by the feeding blade. Under the action of the beating bar, the material is crushed. Due to the existence of the heart force, the juice and meat in the material (which has become slurry) pass through the sieve hole on the screen and enter the next beating (the sieve hole depends on the size of the fruit core), and the core is discharged from the slag pulp leaf to the slag outlet, so as to complete the active separation of the pulp and slag.

features:

1. The slurry and slag are separated actively.

2. It can be combined on the production line and produced by a single machine.

3. The parts in contact with materials are made of stainless steel.
