Principle and application of belt Juicer
Time：2021-04-07 14:57 Browse：277
Working principle of belt type juicer
The refined wet slag raw materials (or solid-liquid mixture) are continuously entered into the hopper through screw pump or conveyor (the material occupies adjustable bandwidth). The two inner and outer ring filter belts are driven by the driving roller, and are distributed evenly by the screw pressing roller, and then enter the curved wedge-shaped area for initial pressure dehydration, and then enter the low pressure zone. A pressure roller with "L" type strip will water Press out a lot of parts, and ensure that the water is discharged from both sides, then enter the high pressure zone of the clamping extrusion. The inner and outer filter belts bypass several groups of reducing diameter of the pinch extrusion roller. A large amount of water is pressed out slowly and forcefully to form the pressed filter cake. On the other hand, the filter belt is a shear force of "s" winding to produce the surface pressure of shaving increase. Under the tension of the filter belt, the outer filter belt will produce pressure on the material The small amount of water in the material is squeezed out. Because the diameter of the press roller decreases gradually, the pressure on the material between the filter belts increases gradually, and a small amount of water is continuously discharged. A large amount of water in the material is forced to squeeze and press the pinch roller and then collected and discharged through the connecting tank. After the inner and outer filter belts are separated, a wear-resistant scraper is provided to scrape the dehydrated filter cake (fruit residue) on the working surface of the inner and outer filter belt. Then, the high pressure solid cone-shaped convex cleaning nozzle forms a fan-shaped cross water belt to continuously wash the net belt to maintain the continuous dehydration effect.
Classification of belt Juicers
1. According to the dehydration pressure, it can be divided into: light roller belt press, heavy-duty counter roll belt press and strong counter roll belt press
2. According to the function, it can be divided into: single type strong roller belt press, combined concentrated press integrated roll belt press and split type press

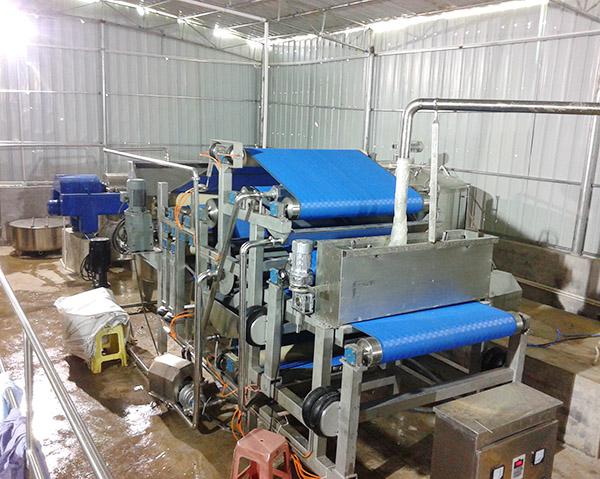

Concentrated press integrated roller belt press
3. According to the bandwidth, it can be divided into 1 m strong roller belt press, 1.5m strong roller belt press, 2 m strong roller belt press, 2.5m strong roller belt press and 2.5m strong roller belt press
